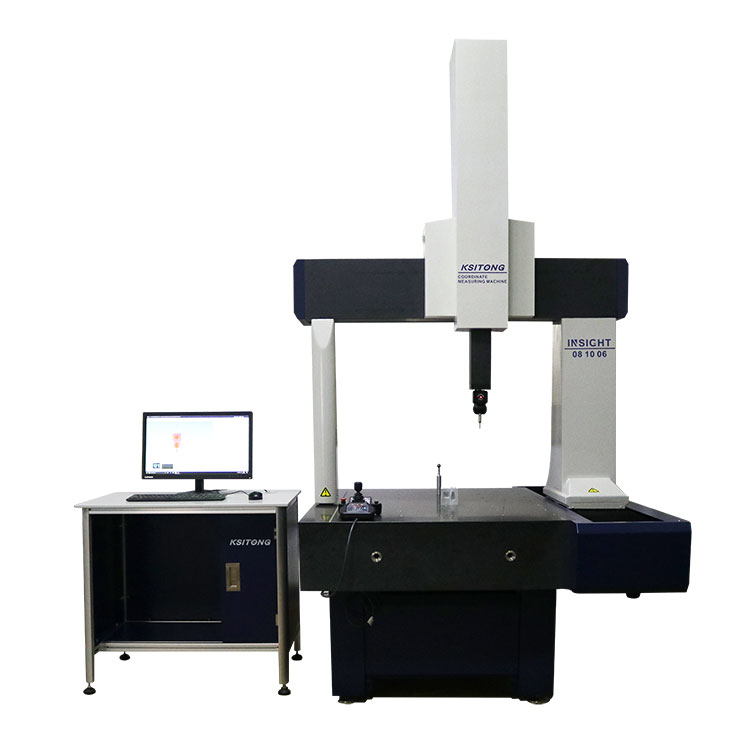

Travel 800*1000*600mm Fully Automatic Coordinate Measuring Machine

This China hot-sale Travel 800*1000*600mm fully automatic coordinate measuring machine possesses a broad feeding and discharging space. The self-adaption metallic frictional transmission system with patent technology effectively improves the dynamic performance of measuring machines, especially those suitable for scanning and measuring systems. Besides the competitive price of the Travel 800*1000*600mm fully automatic coordinate measuring machine, it also maintains stable quality. By using an advanced design concept, stable materials and processes, as well as the controlling system, measuring probe, and sensor from Renishaw, which are the best in the industry, the Travel 800*1000*600mm Fully Automatic Coordinate Measuring Machine ensures the dynamic performance and measurement accuracy of the machine.

Product Feature And Application of Travel 800*1000*600mm Fully Automatic coordinate measuring machine

1. The tri-axle is adopted with a rectangular guide rail with elaborated design, and the so-called various “unique" “and “patentable” and even strange polygon guide rail structures are abandoned, returning to nature. The correction model for rectangular guide rail error is simple and practical; the form is the most common form in the high-precision measuring machine.

2. The long axis is adopted with the most ideal three-coordinate transmission system recognized by industry currently—metallic frictional transmission. Compared with such gear-shape transmission as common synchronous belt and gear rack, the tooth profile efficiency is eliminated completely to enable that the transmission is more steady, effectively eliminate the machine shock brought by the flexible telescoping of the synchronous belt, and improve the transmission rigidity of the measuring machine so as to reach better starting, stopping, and positioning capability, which is an ideal selection for high-precision scanning measurement.

3. The surrounding-type air bearing layout design is adopted uniformly for tri-axles, and the pre-compression air bearing with high air membrane rigidity is utilized. Through comparison with other layouts and the surrounding layout on all sides, the pre-compression force for each air bearing may realize individual control and non-interference mutually to enable that each air bearing can work under the most ideal status.

4. Two columns of the measuring machine are adopted with a double-layer design fully to lower the influence on measuring machine precision by external temperature change and the air conditioner’s air supply system and enable the measuring machine to be provided with more powerful environment adaptability.

5. The brand-new pedestal design of the measuring machine is completely compatible with high-efficiency passive vibration isolation systems or positive air vibration isolation systems to meet the utilization demand of plants with strong earthquake sources and on-line measurement.
