Understanding Open Frame Power Supplies: Your Questions Answered

Open frame power supplies are essential components in various electronic devices and systems. This blog aims to answer common questions about open frame power supplies, including their design, benefits, and applications.

What is an Open Frame Power Supply?

Q: What exactly is an open frame power supply?

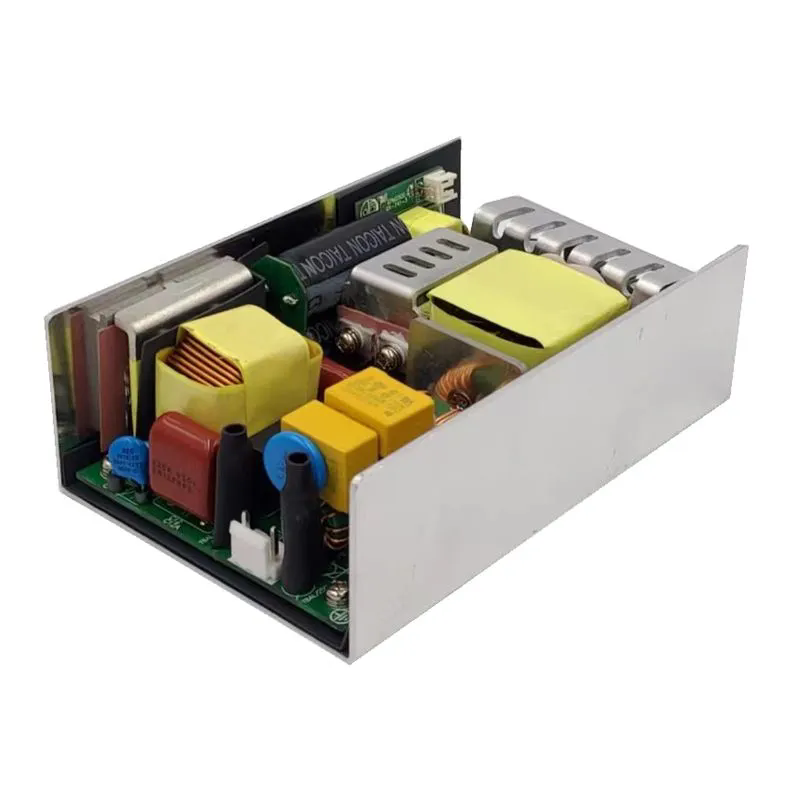

A: An open frame power supply is a type of power supply that does not have a protective enclosure. It consists of a printed circuit board (PCB) with various electronic components that convert AC (alternating current) voltage from the mains into DC (direct current) voltage. The absence of a casing allows for more compact designs and improved heat dissipation.

What Are the Key Advantages of Open Frame Power Supplies?

Q: Why should I choose an open frame power supply over a enclosed type?

A: Open frame power supplies offer several advantages:

1. Space Efficiency: Without an enclosure, these power supplies are typically smaller and can fit into tighter spaces. This is especially beneficial for applications where space is at a premium.

2. Heat Dissipation: The open design allows for better airflow, reducing the risk of overheating. This can lead to improved reliability and longevity of the power supply.

3. Customization: Open frame power supplies can be easily modified or integrated into various systems. Engineers can customize them to meet specific requirements without worrying about fitting them into a case.

4. Cost-Effectiveness: Generally, open frame power supplies are less expensive than their enclosed counterparts due to the simpler design and manufacturing process.

Where Are Open Frame Power Supplies Commonly Used?

Q: In what applications can I find open frame power supplies?

A: Open frame power supplies are commonly used in a variety of applications, including:

- Industrial Equipment: Used in manufacturing machines, control systems, and robotics where space and cooling are critical.

- Telecommunications: Powering routers, switches, and other networking devices that require efficient power management.

- Medical Devices: In certain medical equipment where compactness and reliability are essential, as long as they meet safety standards.

- Consumer Electronics: Found in devices such as televisions, gaming consoles, and audio equipment, where they provide efficient power conversion.

What Should I Consider When Choosing an Open Frame Power Supply?

Q: What factors should I keep in mind when selecting an open frame power supply?

A: When choosing an open frame power supply, consider the following factors:

1. Output Voltage and Current: Ensure the power supply meets the voltage and current requirements of your application. Check the specifications to confirm compatibility.

2. Efficiency Ratings: Look for power supplies with high efficiency ratings (80% or above) to minimize energy waste and heat generation.

3. Operating Temperature Range: Consider the environment where the power supply will operate. Choose one that can function effectively within the expected temperature range.

4. Safety Standards: Ensure the power supply complies with relevant safety certifications, especially for applications in medical or industrial settings.

5. Size and Mounting Options: Check the dimensions and mounting options to ensure it fits your application without issues.

Are There Any Disadvantages to Open Frame Power Supplies?

Q: What are the potential drawbacks of using open frame power supplies?

A: While open frame power supplies have many benefits, they also have some disadvantages:

1. Lack of Protection: The absence of a protective enclosure means the components are more susceptible to dust, moisture, and physical damage.

2. Safety Concerns: Without proper shielding, users may be exposed to electrical components, posing a risk if not handled correctly.

3. Limited Noise Reduction: Open frame power supplies may not provide the same level of electromagnetic interference (EMI) protection as enclosed units.

Conclusion

Open frame power supplies play a crucial role in powering various electronic devices across multiple industries. Their compact design, efficiency, and customization options make them a popular choice for many applications. However, it is essential to consider their limitations and select the right power supply to meet your specific needs. If you have any further questions about open frame power supplies or their applications, feel free to reach out!
