Types of wire rope end connectors

2024-01-03

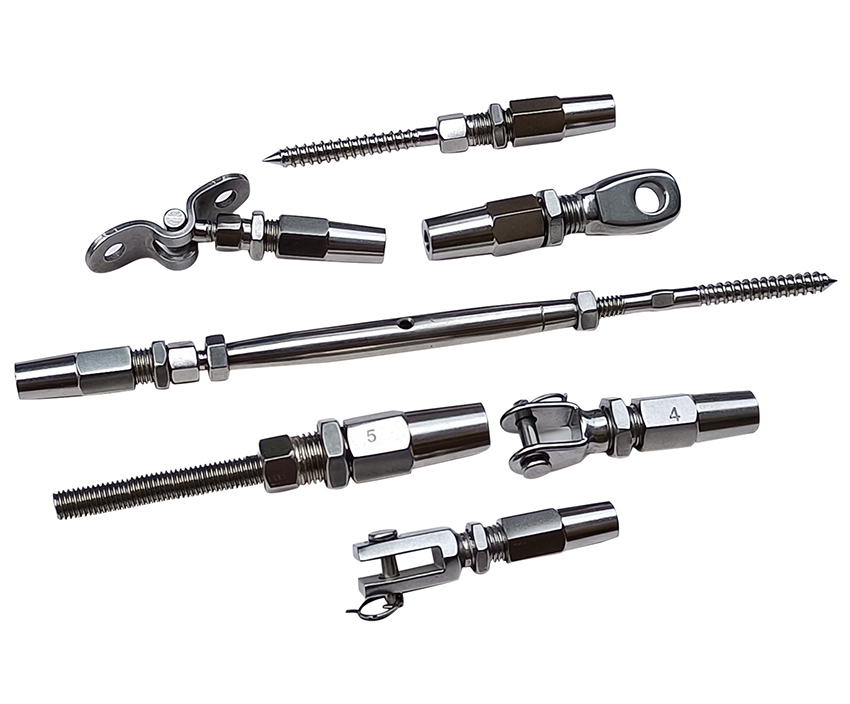

Wire rope end connectors are components designed to secure the ends of wire ropes, allowing for efficient attachment or termination. These connectors are essential for creating reliable and safe connections in various applications, including lifting, rigging, construction, and maritime industries. Here are some common types of wire rope end connectors:

1. Shackles: Shackles are U-shaped metal components with a pin or bolt across the opening. They are commonly used for connecting wire ropes, chains, or other fittings. D-shaped shackles, also known as bow shackles, and anchor shackles are two common varieties.

2. Hooks: Hooks are used to connect wire ropes to other equipment or structures. They come in various designs, such as grab hooks, sling hooks, and eye hooks. Some hooks have safety latches to prevent accidental detachment.

3. Links: Connecting links are shaped like chain links and are used to join wire ropes together or attach them to other components. They often have screw-type closures for added security.

4. Turnbuckles: While turnbuckles are primarily used for adjusting tension in wire rope assemblies, they can also serve as end connectors. Turnbuckles consist of two threaded eye or hook ends connected by a central body, allowing for easy adjustment.

5. Swivels: Swivels are connectors that allow for rotation between connected components. They are useful in applications where the wire rope needs to twist or rotate freely.

6. Wire Rope Clips (Clamps): These are U-shaped metal devices that secure the loose end of a wire rope to its body, creating an eye or loop. Wire rope clips are commonly used in applications like wire rope splicing and creating temporary eye terminations.

7. Spelter Sockets: Spelter sockets are fittings attached to wire ropes through a swaging or speltering process. They provide a secure and durable termination point for the wire rope.

8. Threaded Terminals: Threaded terminals, including eye bolts and eye nuts, have screw threads that allow the wire rope to be threaded through and secured by tightening a nut. These fittings are often used in tensioning applications.

The choice of wire rope end connector depends on factors such as the specific application, load requirements, and environmental conditions. It's crucial to follow manufacturer guidelines, industry standards, and proper installation practices to ensure the safety and reliability of the overall system. Regular inspection and maintenance of wire rope end connectors are also essential to identify any signs of wear, damage, or fatigue.
