Key points about pot magnet assemblies

2023-11-23

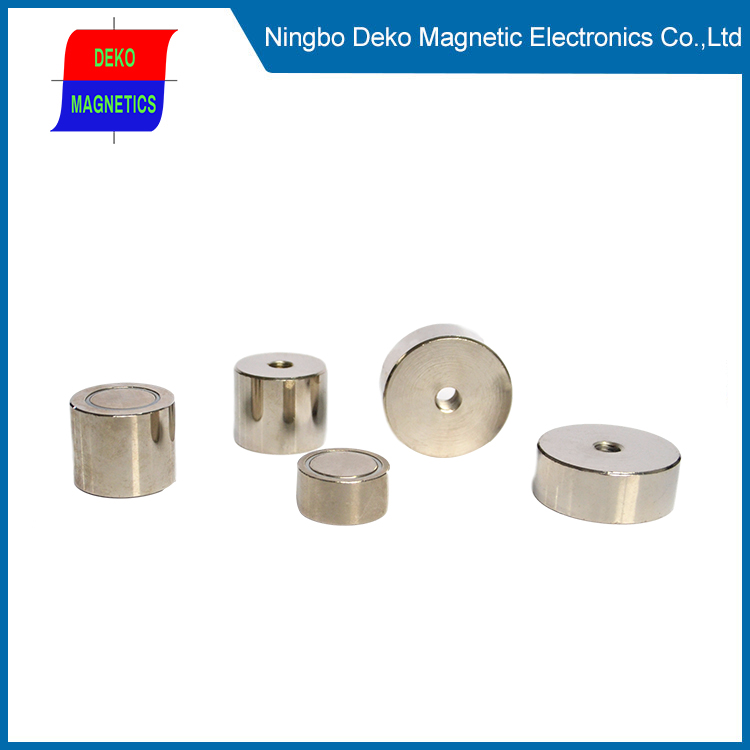

A pot magnet assembly, also known as a cup magnet assembly, is a magnetic system that consists of a magnet encased within a steel cup or pot. These assemblies are designed to enhance the magnetic strength on one face while providing a protective shield on the other. Here are some key points about pot magnet assemblies:

1. Components:

  - Magnet Core: The core of the assembly is a strong magnet, often made of materials like neodymium iron boron (NdFeB) or ceramic (ferrite).

  - Steel Pot or Cup: The magnet is enclosed within a steel cup or pot, which enhances the magnetic strength on one side and provides a protective covering on the other.

2. Design and Structure:

  - The steel pot or cup serves to concentrate the magnetic flux on one side, typically the open face, making it suitable for direct contact with a surface or object.

  - The closed side of the pot acts as a protective shield, reducing the risk of damage to the magnet and providing mechanical stability.

3. Applications:

  - Industrial Holding and Fixturing: Used in various industrial applications where a strong, concentrated magnetic force is required for holding or fixing objects securely.

  - Automotive: Applied in automotive manufacturing and repair for tasks like holding metal panels during welding.

  - Magnetic Clamping Systems: Utilized in magnetic clamping systems for holding workpieces during machining or fabrication processes.

4. Strength and Holding Capacity:

  - The strength and holding capacity of a pot magnet assembly depend on factors such as the type and size of the magnet used, as well as the design of the steel pot.

5. Coatings:

  - Pot magnet assemblies are often coated to protect against corrosion. Common coatings include nickel, zinc, or epoxy, with the choice of coating depending on the specific application and environmental conditions.

6. Mounting Options:

  - Some pot magnet assemblies come with additional features for mounting, such as threaded holes or studs, making it easier to attach them to fixtures or machinery.

7. Customization:

  - Pot magnet assemblies can be customized based on specific requirements, including the size and shape of the pot, the strength of the magnet, and any additional features needed for a particular application.

8. Safety Considerations:

  - Proper safety precautions should be taken when handling pot magnet assemblies, especially in situations where strong magnetic forces are involved.

Pot magnet assemblies are versatile and find application in numerous industries due to their ability to concentrate magnetic strength on one side while providing a robust and protective housing. Their design allows for efficient use in various holding, fixing, and clamping applications.
