Functions of Suspension Angle Steel Line Tower

2024-04-16

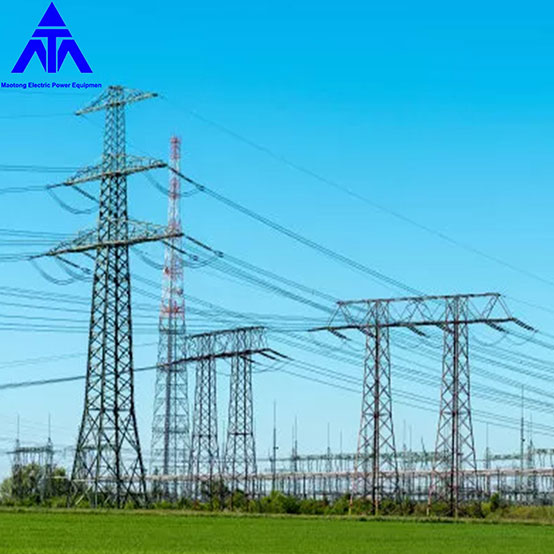

A suspension angle steel line tower is a type of transmission tower used in electrical power transmission systems. It's designed to support overhead power lines while maintaining proper tension and clearance. Here's an overview of its features and functions:

1. Structure: A suspension angle steel line tower typically consists of a vertical steel structure with crossarms and braces that support the electrical conductors. The tower is designed to withstand the mechanical loads exerted by the conductors, including tension, wind, and ice loads.

2. Suspension Configuration: The tower supports the conductors using suspension insulators attached to crossarms. These insulators suspend the conductors from the tower at specific angles to maintain the desired tension and clearance between the conductors and the ground or other obstacles.

3. Angle Steel Construction: The tower structure is often made of angle steel sections welded or bolted together to form a rigid framework. Angle steel offers high strength-to-weight ratio and corrosion resistance, making it suitable for outdoor applications in various environmental conditions.

4. Line Design: Suspension angle steel line towers are used in overhead transmission lines where the conductors need to be supported at specific angles to maintain proper tension and sag. These towers are often used in sections of the transmission line where the terrain changes, such as river crossings or changes in elevation.

5. Height and Configuration: The height and configuration of suspension angle steel line towers depend on factors such as the voltage of the transmission line, the span length between towers, and the terrain conditions. Towers may vary in height and configuration to accommodate different line designs and requirements.

6. Installation: Suspension angle steel line towers are typically installed using heavy equipment such as cranes or helicopters. The towers are anchored to concrete foundations or steel piles to provide stability and support.

7. Maintenance: Regular maintenance of suspension angle steel line towers is essential to ensure the integrity and reliability of the transmission line. This may include visual inspections, corrosion protection, and repairs or replacements as needed.

Overall, suspension angle steel line towers play a critical role in supporting overhead transmission lines and ensuring the reliable and efficient transmission of electrical power over long distances. Their sturdy construction and design help maintain the structural integrity of the transmission line under various environmental and loading conditions.
