Functions of Dredger Cutter

2023-12-15

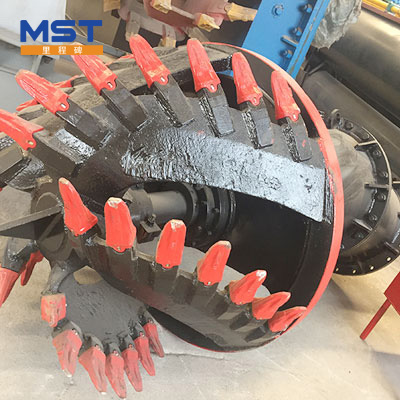

The dredger cutter, often referred to as a cutter head or dredging head, is a crucial component of certain types of dredgers, particularly Cutter Suction Dredgers and Trailing Suction Hopper Dredgers. Here are the key functions and features of a dredger cutter:

1. Excavation of Material:

  - The primary function of the dredger cutter is to excavate or cut through the seabed or riverbed material. It is equipped with cutting edges, teeth, or blades designed to break up and loosen the sediment.

2. Loosening of Compacted Material:

  - In many cases, the seabed or riverbed material can be compacted or consolidated over time. The cutter is designed to penetrate and loosen this compacted material, making it easier for subsequent suction or removal.

3. Enhanced Dredging Efficiency:

  - The presence of a dredger cutter significantly enhances the efficiency of the dredging process. By breaking up the material before suction, the cutter allows for a more effective extraction of sediment.

4. Adjustable Depth and Positioning:

  - Many dredger cutters are equipped with a system that allows for the adjustment of dredging depth. This capability is crucial for adapting to varying seabed or riverbed conditions.

5. Hydraulic or Mechanical Drive:

  - Dredger cutters can be powered by hydraulic or mechanical systems. Hydraulic systems are common for their adaptability and ability to provide high torque, allowing efficient cutting through different types of material.

6. Replaceable Teeth or Blades:

  - The teeth or blades of the dredger cutter are often replaceable to maintain cutting efficiency. Wear and tear can occur due to the abrasive nature of the material being dredged.

7. Rotation Mechanism:

  - The cutter head is typically designed to rotate, ensuring that the cutting action is distributed evenly across its surface. This rotation is often controlled by the dredging operator.

8. Integration with Suction System:

  - In Cutter Suction Dredgers, the cutter is integrated into the suction pipe system. After the material is cut, it is immediately suctioned into the dredger through the same mechanism.

9. Spud or Anchoring System:

  - Cutter Suction Dredgers often use spuds or anchors to stabilize the vessel during dredging operations. These can be raised or lowered to adjust the dredging depth and control the cutter's position.

10. Environmental Adaptability:

   - The design of the dredger cutter takes into consideration different types of sediments and varying seabed conditions, allowing for adaptability to different environments.

11. Dredging in Confined Spaces:

   - The design of the cutter allows it to operate in confined spaces, such as within ports, channels, or near structures like bridges, where precision and control are essential.

The efficiency of a dredger cutter plays a critical role in the overall effectiveness of dredging operations, especially when dealing with densely packed or consolidated materials. It allows for the precise and controlled removal of sediment from water bodies.
