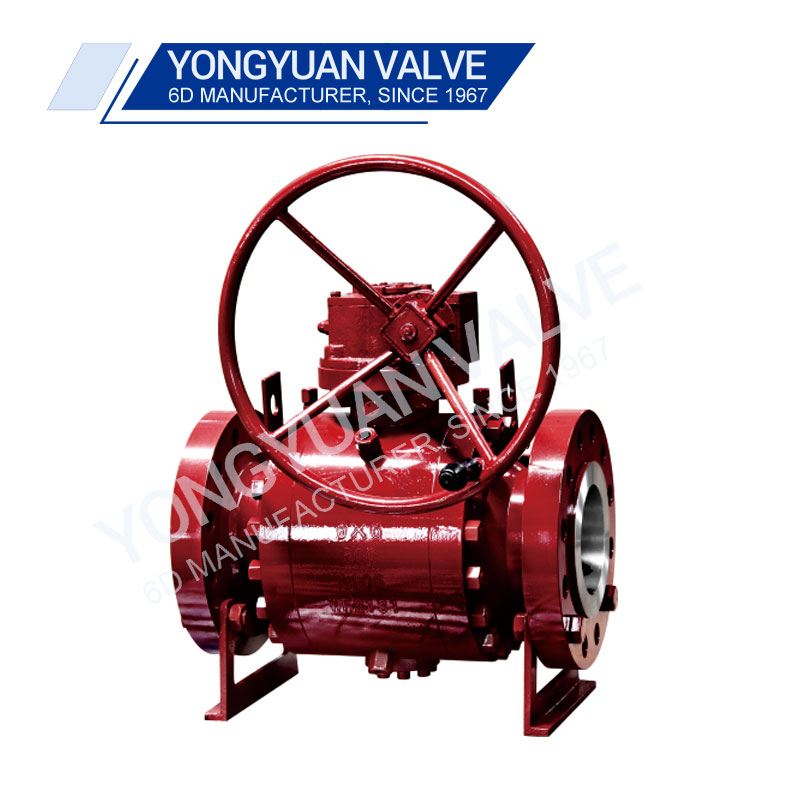

How are API 6D 3-Piece Trunnion Ball Valves tested to meet industry standards and ensure reliable operation in critical applications?

2023-10-17

API 6D 3-Piece Trunnion Ball Valves undergo rigorous testing to meet industry standards and ensure reliable operation in critical applications. These tests are conducted during the manufacturing process to verify the valves' performance, quality, and adherence to API 6D and other relevant standards. Some of the key tests conducted on API 6D 3-Piece Trunnion Ball Valves include:

1. Hydrostatic Pressure Test: This test assesses the valve's ability to withstand high-pressure conditions without leakage. The valve is filled with water or another suitable test fluid, and the pressure is gradually increased to a level specified in the standard. The valve must hold the pressure for a specific duration without any visible leakage.

2. Seat Leakage Test: The seat leakage test checks the sealing capability of the valve seats. The valve is subjected to a specific pressure, and the leakage through the seats is measured and recorded. The allowable leakage rate is defined in the API 6D standard.

3. High-Pressure Gas Test: In this test, high-pressure gas is used to evaluate the valve's ability to withstand gas applications without leakage or failure. This test is particularly relevant for valves used in natural gas or other gas transportation systems.

4. Fire Test: Fire tests are performed to evaluate the valve's ability to withstand elevated temperatures during a fire event. The valve is exposed to a flame for a specified duration, and its ability to maintain its integrity and functionality is assessed.

5. Torque Test: The torque test measures the operating torque required to open or close the valve. It ensures that the valve operates smoothly and does not experience excessive resistance.

6. Low-Temperature Test: In low-temperature tests, the valve is subjected to extremely cold conditions to assess its performance and functionality in cold environments.

7. Cycling Test: The cycling test involves opening and closing the valve multiple times under specified conditions to assess its durability and resistance to wear.

8. Actuation Test: For valves equipped with actuators, actuation tests are performed to verify the actuators' performance and the valve's response to actuation signals.

9. Material Testing: Materials used in the valve construction are subject to various material tests to ensure they meet the specified standards and exhibit the required mechanical properties.

10. NDE (Non-Destructive Examination): NDE methods, such as ultrasonic or radiographic testing, may be used to detect any internal defects or flaws that could compromise the valve's integrity.

Manufacturers must follow the testing procedures outlined in API 6D and other applicable standards to obtain certification and meet industry requirements. Testing and certification ensure that API 6D 3-Piece Trunnion Ball Valves meet the necessary quality and safety standards, providing confidence in their performance for critical applications.
