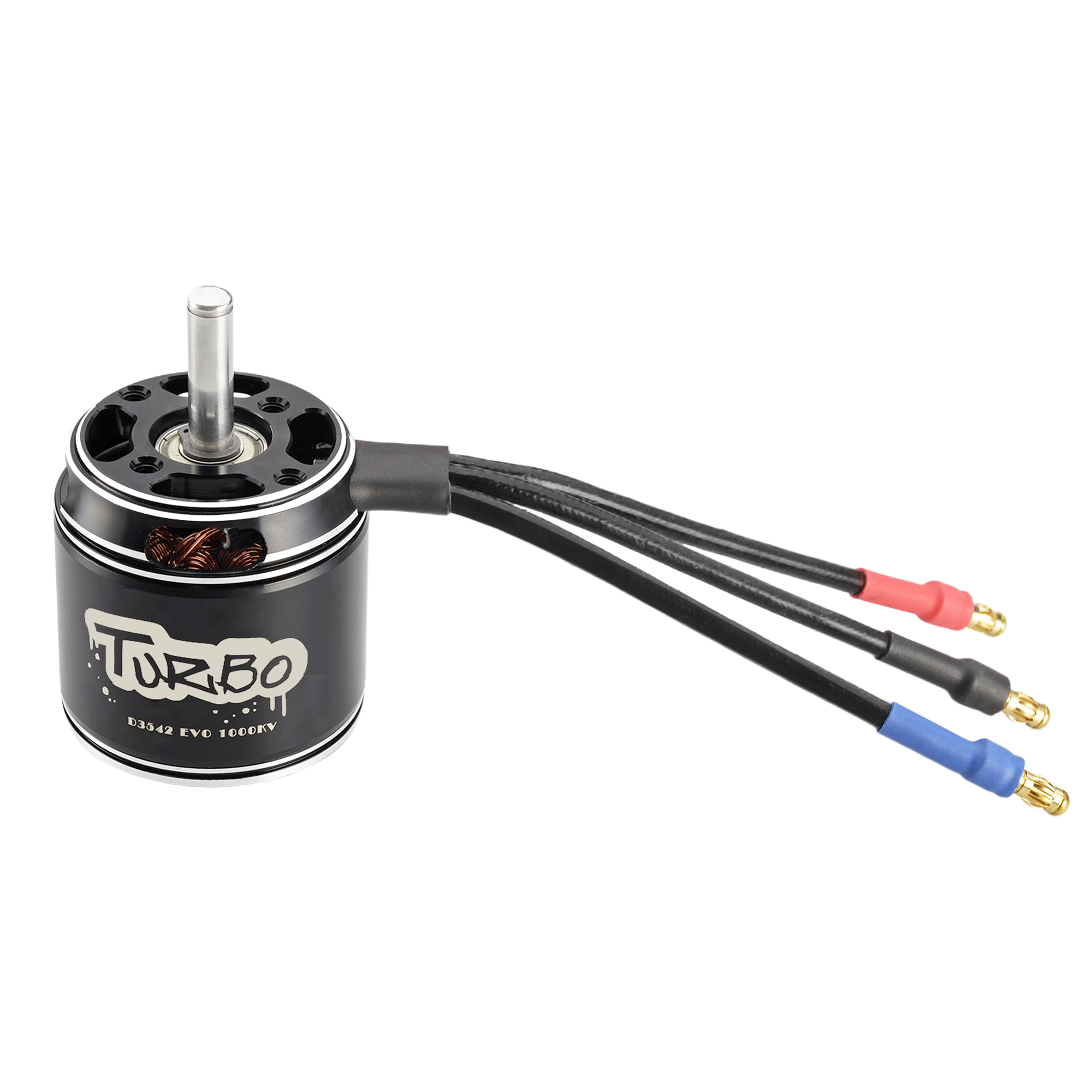

D3542EVO Fixed Wing Motor
D3542EVO（2820） RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm.D3542EVO RC Brushless Motor Specification:Weight: 136g(Including wires)Motor Size: 35.3 x42mmShaft Size: 5.0*59.5mmStator Di......
Send Inquiry
Product Description
D3542EVO（2820） RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm.
D3542EVO RC Brushless Motor Specification:
Weight: 136g(Including wires)
Motor Size: 35.3 x42mm
Shaft Size: 5.0*59.5mm
Stator Diameter: 28mm
Stator Height: 20mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
D3542 EVO RC Brushless Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding
