Advantages and Applications of Hydraulic Filter

2024-08-02

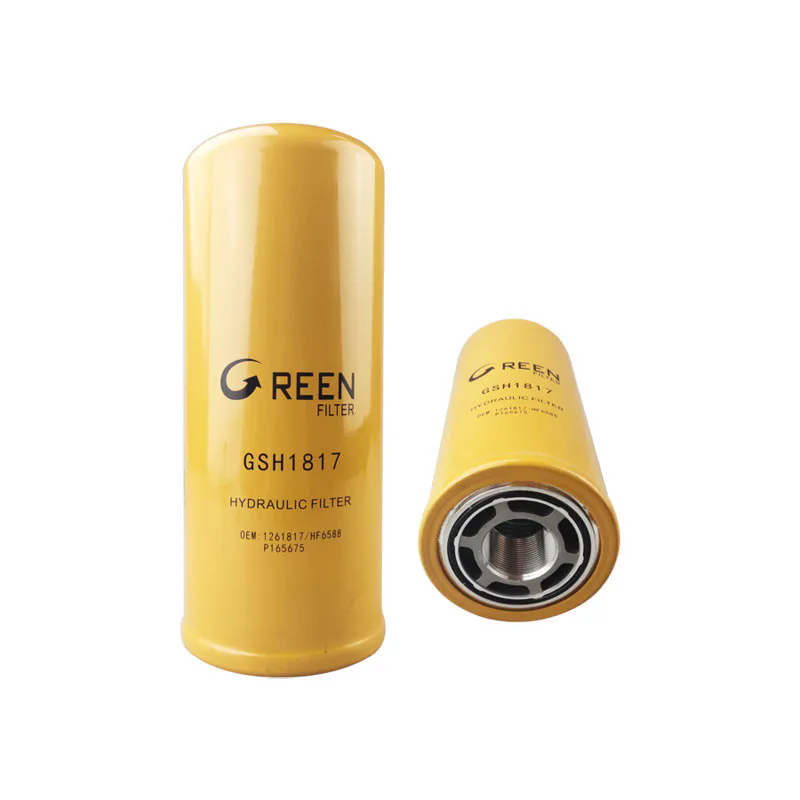

A hydraulic filter is a crucial component in hydraulic systems designed to remove contaminants from hydraulic fluid, ensuring the efficient and reliable operation of hydraulic machinery and equipment. These filters are essential for protecting hydraulic components from damage and maintaining system performance.

Key Features

1. Filter Types

  - Suction Filters: Located on the suction side of the hydraulic pump, they protect the pump from large particles and contaminants entering the system.

  - Return Line Filters: Positioned in the return line before the hydraulic fluid returns to the reservoir, they remove contaminants that have accumulated during the operation.

  - Pressure Filters: Installed in the high-pressure line, these filters protect sensitive components from contaminants that can cause wear or damage.

  - Offline Filters: Also known as bypass filters, they operate independently of the main hydraulic circuit, continuously filtering the fluid to remove very fine particles.

2. Filter Media

  - Paper Filters: Commonly used due to their cost-effectiveness and good filtration capacity for general applications.

  - Mesh Filters: Made of metal mesh, these filters are reusable and suitable for larger contaminants but may require more frequent cleaning.

  - Synthetic Media: Made from advanced materials, offering high dirt-holding capacity and efficient filtration for more demanding applications.

3. Filtration Ratings

  - Micron Rating: Indicates the size of particles the filter can remove. Common ratings include 5, 10, 20, or 25 microns.

  - Beta Ratio: Represents the filter's efficiency in removing particles of a specific size, usually provided as a ratio or percentage.

4. Construction

  - Housing: Typically made of durable materials like steel or aluminum, designed to withstand high pressure and harsh operating conditions.

  - Element: The internal component that holds the filter media, designed for easy replacement or cleaning.

5. Indicators and Bypass

  - Pressure Indicators: Monitor the pressure differential across the filter to signal when the filter needs maintenance or replacement.

  - Bypass Valve: Allows fluid to bypass the filter if it becomes clogged, preventing damage to the hydraulic system due to excessive pressure buildup.

Advantages

1. Protects Hydraulic Components

  - Prevents Wear and Tear: Removes contaminants that can cause wear and damage to hydraulic pumps, valves, and actuators.

  - Extends Equipment Life: Reduces the risk of failure and maintenance costs by keeping the hydraulic fluid clean.

2. Maintains System Efficiency

  - Ensures Smooth Operation: Keeps the hydraulic fluid free of particles that can cause blockages or reduce system performance.

  - Improves Reliability: Enhances the overall reliability of the hydraulic system by ensuring consistent fluid quality.

3. Reduces Downtime

  - Prevents Failures: Minimizes the risk of unexpected breakdowns and maintenance issues by maintaining clean hydraulic fluid.

  - Cost Savings: Helps avoid costly repairs and replacements by protecting critical components from contamination.

Applications

1. Construction Equipment: Used in hydraulic systems of excavators, loaders, and bulldozers to ensure reliable operation in harsh environments.

2. Agricultural Machinery: Protects hydraulic systems in tractors, harvesters, and other farm equipment.

3. Industrial Machinery: Used in hydraulic presses, injection molding machines, and other industrial equipment to maintain system performance.

4. Automotive: Found in hydraulic systems of vehicles such as trucks and buses, where it ensures the smooth operation of hydraulic components.

Considerations

1. Compatibility: Choose a filter that is compatible with the specific hydraulic fluid and system requirements, including pressure and flow rate.

2. Maintenance: Regularly check and replace or clean the filter according to the manufacturer's recommendations to ensure optimal performance.

3. Filter Location: Proper placement of the filter in the hydraulic system is essential for effective filtration and system protection.

Summary

A hydraulic filter is a vital component in hydraulic systems, designed to remove contaminants from hydraulic fluid and protect machinery from wear and damage. By maintaining clean fluid and ensuring efficient operation, hydraulic filters contribute to the longevity and reliability of hydraulic equipment. Proper selection, maintenance, and monitoring of hydraulic filters are essential for optimal system performance and reduced downtime.
